FLASH SEPARATORS

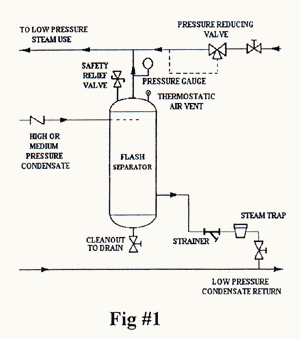

Fig #1 Typical Flash Separator application shows flashing high or medium pressure condensate returns to supplement a low pressure steam use saving valuable BTU's

Fig #2 Flash Steam from a high pressure process to supply medium pressure steam to heaters. Flash Steam from the separator vent is 97% quality or better.

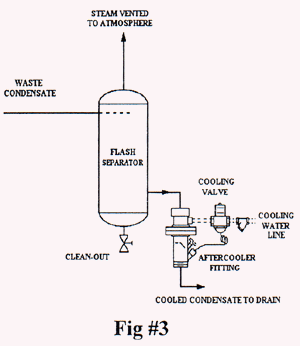

Fig #3 Waste condensate that needs cooled to a drain can use a Flash Separator along with our automatic aftercooler fitting and temperature regulator valve that automatically cools condensate to drain to 140° F.
