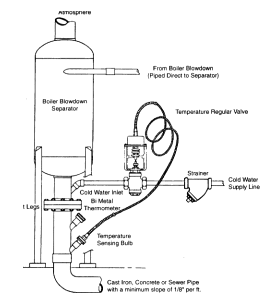

| Shown is a typical installation of a Blowdown
Separator with Accessories. This package is shown with a A34B
Separator, A18DF drain automatic aftercooler fitting with
self actuating temperature regulator valve, for automatic
cooling of blowdown to the drain to 140 deg. F.,strainer,
bi-metal thermometer to show the drain temperature, and three
angle legs to lift the separator off the floor. Length is
determined for each size of drain and aftercooler.
Four different separators and aftercooler
packages are available all sized to calculated blowdown flows
depending on the size of blowdown valve and operating pressure.
Once the separator is selected no further
sizing is needed and the connections can follow the
sizes provided.
Other available accessories include wall
brackets instead of angle legs, solenoid valve with aquastat
instead of
self actuating valve, pressure gauge with siphon, vent exhaust
head, cooling water check valve and pressure reducing valve.
You can choose the desired accessories from the front side
to select the package for your
own specific.
|
