CYCLONE EXHAUST HEADS

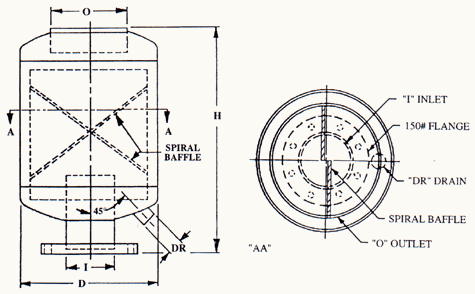

Water and Oil entrained in Exhaust Steam and Gases may cause damage to roofs and sidewalls and unsightly icing and dirt accumulation. The spiral baffles swirl the steam or exhaust gases and the resulting CYCLONIC ACTION throws the entrained water, oil and dirt to the outside of the cyclone where it is directed to the exhaust head drain.

CYCLONIC ACTION
Spins out entrained water, oil and dirt leaving only Clean, Dry exhaust.

REDUCES NOISE
Large exhaust opening reduces velocity and minimizes exhaust noise and does not produce back pressure.

PROTECTS LINES
Cyclone exhaust head "Spiral Baffle" protects exhaust line from entry of rain, snow and dirt directing them to the drain.
