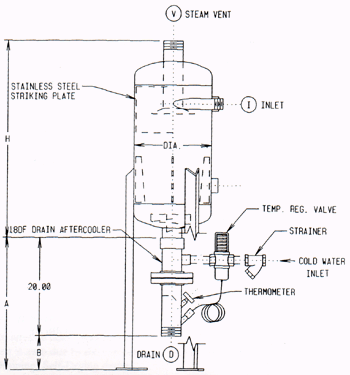

BLOWDOWN SEPARATORS & ACCESORIES DIMENSIONS WITH THREADED CONNECTIONS:

Blowdown Separators

Blowdown Separator Size:
MODEL
DIA.
HEIGHT
A14
10.75"
21"
A20
14"
22"
A34
14"
34"
A56
14"
56"

Connections Sizes Per Selector Chart:
"I" INLET
"D" DRAIN
"V" VENT
1", 1 1/4",
1 1/2", 2",
2 1/2", or 3"
2", 2 1/2",
3", 4", 5",
6", or 8"
2", 2 1/2",
3", 4", 5",
6", or 8"

Drain Size Determines Leg Length:
"D" DRAIN SIZE
A
B
"D" = 2"
22"
2"
"D" = 2 1/2"
23"
3"
"D" = 3"
24"
4"
"D" = 4"
25"
5"
"D" = 5"
30"
10"
"D" = 6"
34"
14"
